MULTISYS

PC Based Security Management System

Multisys® is a unique, user friendly, modular PC based Security Management System. It uses a common communication protocol to integrate and control the APS Electro-Fence controllers, Flexiguard analyzers and other alarm devices.
This integration allows the system designer the flexibility to construct many different perimeter intrusion detection systems with multiple network configurations.

The system is controlled using programmable icons on the GUI making the system extremely easy to programme and operate. All alarms are displayed on maps showing the operator exactly where on the site the alarm has occurred.

Multisys PC Based Security Management System
Multisys TCP/IP Ethernet
Multisys Log Files to Record and Store All Activity

Programming

The system is very easy to program using intuitive drop down menus for each item. Alarms actions can be linked with various outputs to control other devices, e.g switch on lights, activate sirens or send GSM SMS messages.

Communication

The various modules connected to the Multisys PC communicate using a common protocol by RS485 or Ethernet TCP/IP. The data can be sent by copper data cables, fibre optic cables, radio transmitter or microwave link.

Log File

All system activity is recorded and stored in a log file. Alarm activity and everything the operator does is recorded. In the event of an incident the files can be searched to find out exactly what occurred.

Users Login

Each user is assigned a unique user name and password. There is no limit to the number of users of the system.

FEATURES:

  • Controls 508 Pulstar Energizers
  • Controls 508 Flexiguard Analyzers
  • 2032 Alarm Inputs using ACUs
  • RS485 Communication
  • Operator Activity Log

BENEFITS:

  • Easy to Program and Operate
  • Unique User Name and Password Assigned to User
  • Each Zone can be Viewed on Screen
  • Fence Voltage can Monitored in Real Time on Screen
Multisys installation

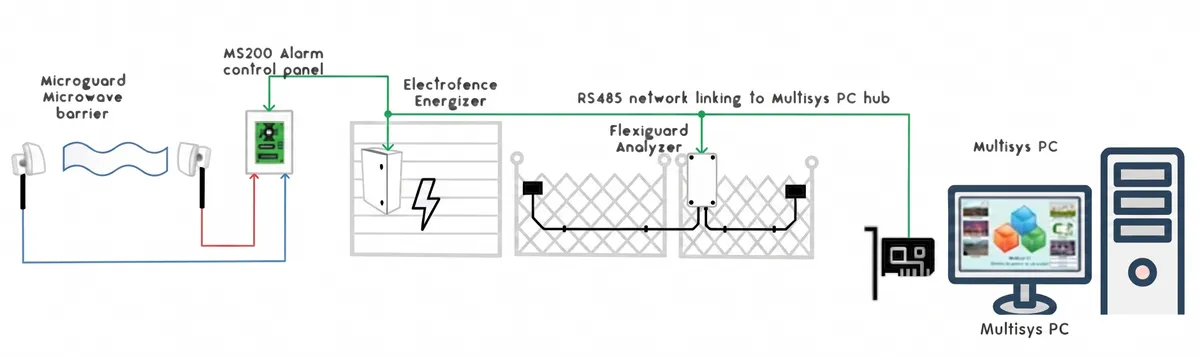

How an installation would look:

  • Any combination of Electrofence, Flexiguard and Microguard possible on same network.
  • Up to 354 RS485 network nodes possible in single network.

For more information download the product data sheet.
